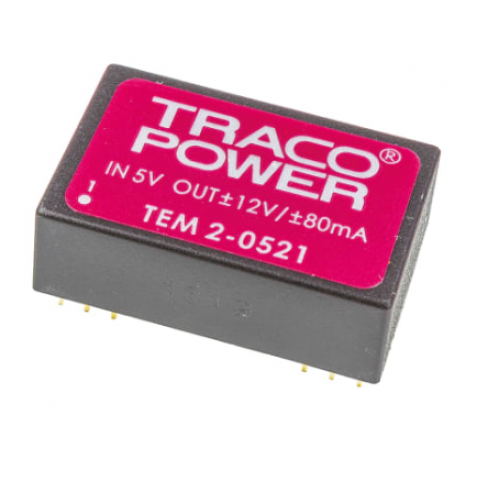

Traco 2W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEM-2 Series
The Traco Power TEM 2 series is a range of regulated, 2 Watt, DC/DC converters in a DIP-24 package.
These isolated converters offer tight line/load regulation and 100Vdc I/O isolation. The internal filter fitted as standard in these DC-DC converters reduces reflected input ripple and guarantees low output noise. The TEM 2 series provides an economical solution for many industrial or consumer electronics applications.
Products not recommended for new designs, please refer to the alternative at the bottom of the page
DIL-24 plastic package
Tightly regulated output
Very low output noise
Short circuit protection
Operating temperature range –25°C to +70°C
I/O isolation 1’000 VDC
Internal filter
Industry standard pinout
Standards
cUL/UL 60950-1, IEC/EN 60950-1
Approvals
cUL/UL , IEC/EN, CSA File No. 226037
| Attribute | Value |
|---|---|
| Output Voltage | ±12V dc |
| Input Voltage Range | 4.5 → 5.5 V dc |
| Input Voltage Nominal | 5 V dc |
| Isolation Voltage | 1kV dc |
| Power Rating | 2W |
| Output Current | ±80mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Efficiency | 53% |
| Package | DIP 24 |
| Minimum Temperature | -25°C |
| Load Regulation | ±3% |
| Maximum Temperature | +70°C |
| Series | TEM 2 |
| Width | 20mm |
| Depth | 10mm |
| Length | 32mm |
