Click Image for Gallery
| Panel Brand |
|---|
| Panel Size |
|---|
| Resolution |
|---|
| Display Area |
|---|
| Outline Size |
|---|
| Brightness |
|---|
| Viewing Angle |
|---|
| Best View on |
|---|
| Display Colors |
|---|
| Frequency |
|---|
| Weight |
|---|
| Sharp |
| 15.0" |
| 1024(RGB)×768, XGA, 85PPI |
| 304.128(W)×228.096(H) mm |
| 331.3(W)×257.9(H) mm |
| 200 cd/m² (Typ.) |
70/70/60/60 (Typ.)(CR≥10)  |
| - |
| 262K |
| 60Hz |
| 1.30Kgs (Max.) |
| Panel Model |
| Panel Type |
| Pixel Format |
| Bezel Opening |
| Surface |
| Contrast Ratio |
| Display Mode |
| Response Time |
| Lamp Type |
| Touch Screen |
| Application |
| LQ150X1DG11 |
| a-Si TFT-LCD , LCM |
| RGB Vertical Stripe |
| 308.2(W)×232.1(H) mm |
| Antiglare (Haze 28%), Hard coating (2H) |
| 300:1 (Typ.) (TM) |
| TN, Normally White, Transmissive |
| 10/35 (Typ.)(Tr/Td) |
| 2 pcs CCFL , 50K hours , Without Driver |
| Without |
|
| Signal Interface | Parallel RGB (2 ch, 6-bit) , 60 pins Connector |
|---|
| Input Voltage | 5.0V (Typ.)(VCC) |
|---|
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C |
|---|

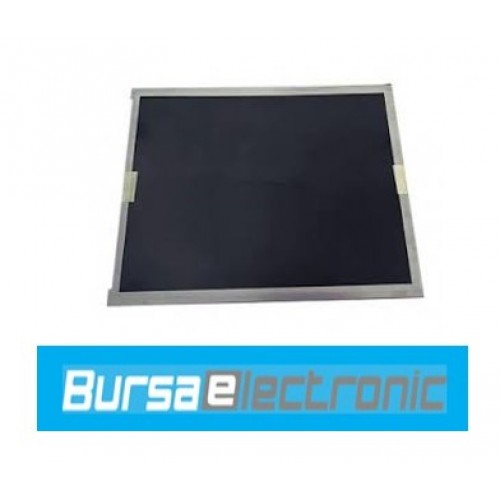

SHARP LQ150X1DG11 LQ150X1DG10 LQ150X1DG16 orijinal 15 inç 1024*768 LCD
- Markalar SHARP
- Ürün Kodu: LQ150X1DG11
- Depo Yeri : Vitrin
- Stok Durumu: 3
Etiketler:
SHARP LQ150X1DG11 LQ150X1DG10 LQ150X1DG16 orijinal 15 inç 1024*768 LCD,
SHARP LQ150X1DG11,
LQ150X1DG10,
LQ150X1DG16,
orijinal 15 inç,
1024*768 LCD,
LQ150X1DG11
